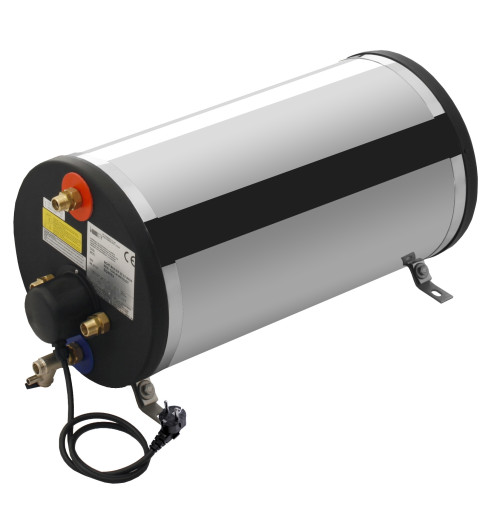

Boat Boiler 30LT Water Heaters - Stainless Steel - ATI

- electrical heating elements are available in Incoloy at 500, 800 and 1200 Watts allowing hot water production when engine heat is not available;
- all A.T.I units are delivered with an adjustable safety thermostat;
- pressure relief and non-return valve;
- power supply cable as standard;
- the external casing of this range is made of AISI 304 stainless steel;
- all units come complete with AISI 304 stainless steel mounting brackets;
- easy drain connection;
- thanks to the large surface area of the AISI 316L stainless steel heat exchanger/coil, A.T.I. water heaters have the ability to produce a large output of hot water;
- tank made of stainless steel AISI 316 L, followed by anti-corrosion treatment of pickling and passivation;
- for heat insulation A.T.I uses closed cell expanded polyurethane foam (HFC, CFC, HCFC and HFA free).
Dimensions:

Order No. | Description | Storage Capacity LT(Gallons) | Weight Empty kgs (lbs) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
BB3005XR | Heater 500W / 30L - 230V | 30 (7.93) | 17.20 (38) | 322 - 12.6" | 267 - 10.40" | 470 - 18.30" | 334 - 13.00" | 545 - 21.30" | 620 - 24.2" |
BB3012XR | Heater 1200W / 30L - 230V
| 30 (7.93)
| 17.20 (38)
| 322 - 12.6"
| 267 - 10.40"
| 470 - 18.30"
| 334 - 13.00"
| 545 - 21.30"
| 620 - 24.2"
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Heaters |
Capacity |
29-----> Liters
7.7----> Galons |
Electric Supply |
230 V ∼ 50 Hz
|
empty weight |
17.20 Kg
38.00 LB |
Max Pressure |
700 Kpa
102 Psi |
Power in Watts |
500 Watts |
