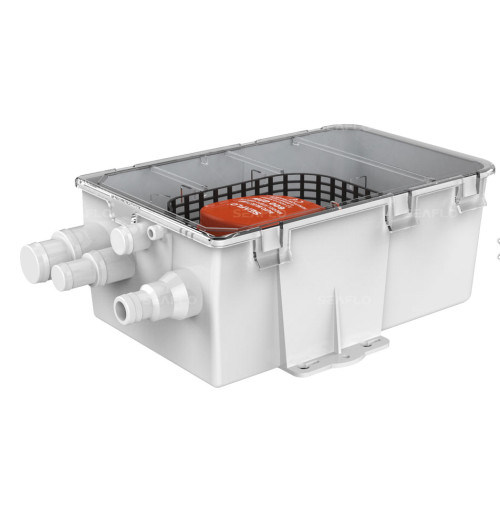

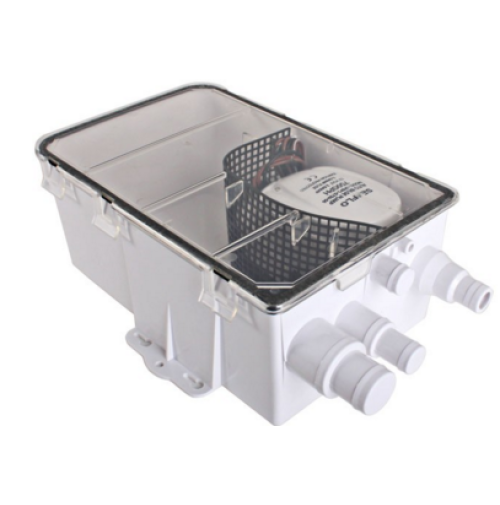

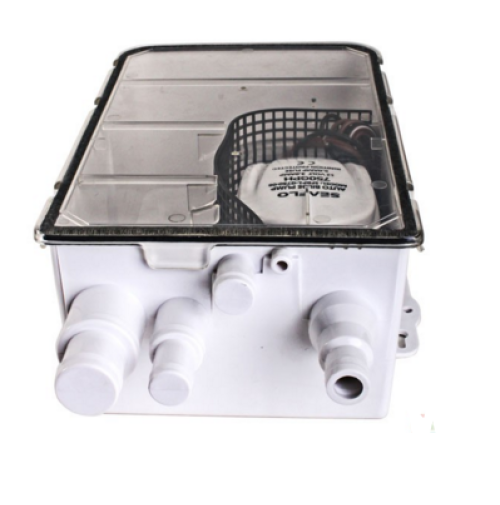

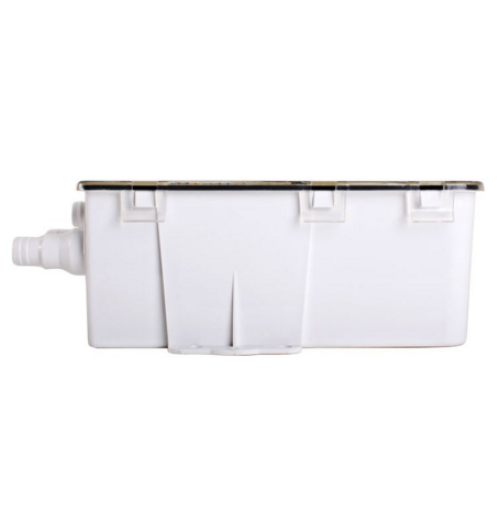

Shower Sump Pump System 750 GPH:
Features & Benefits:
A removable mesh filter allows easy cleaning
Clear screw-down cover
Check valve on the outlet
Ignition protected
Handles wastewater from more than one tapping points
Easy installation
Multiple inlet ports for versatile usage
Available in 600 & 750 GPH (2271 & 2838 LPH), models in 12 and 24 volt versions

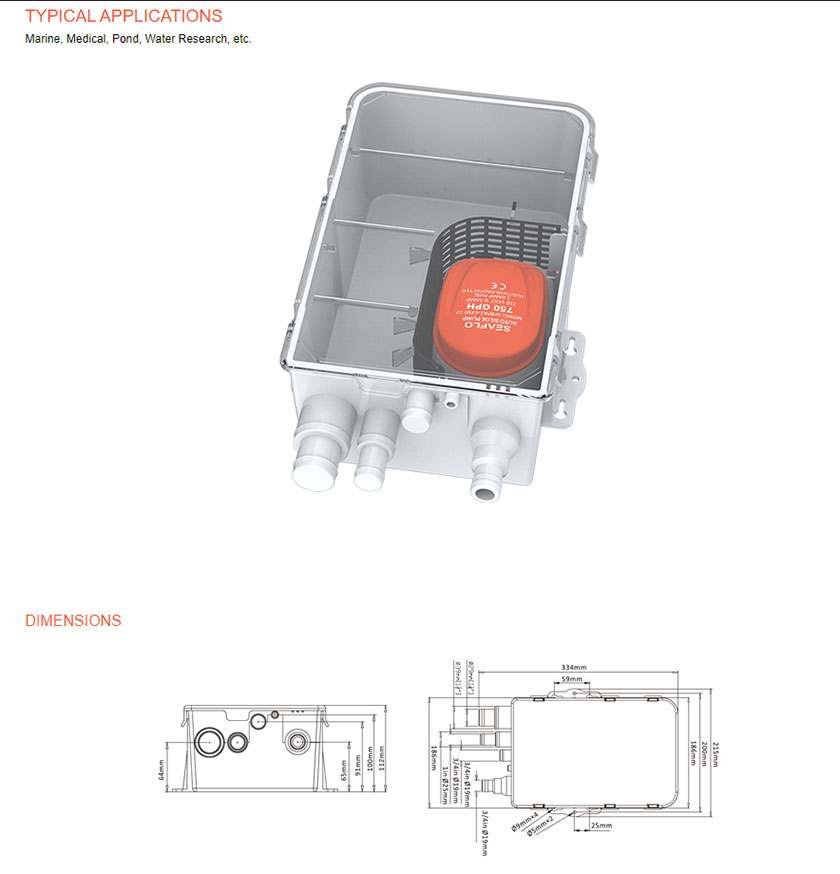

Typical Applications:
Marine
RV & Campers
Industrial

PUMP:
Liquid Temperature: 110°F (43°C) Max.
Priming Capabilities: Not needed flooded suction
Power: 3.0 amps max current draw
Max Pressure: Not needed
Inlet/Outlet Ports
Inlet: 1 x 3/4"
1 x 3/4" or 1 x 1"
1 x 1 1/8" or 1 x 1½"
Outlet: 3/4"
Weight : 2.57 lbs (1.17 kg)

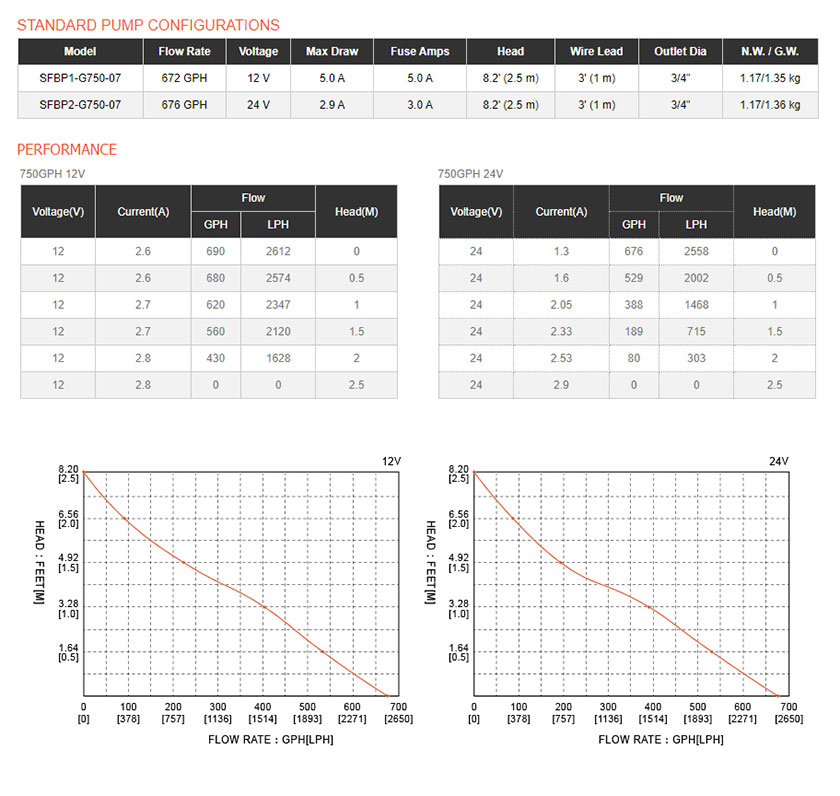

Model
| Flow rate
| Volts
| Current
| Head
| Wire lead
| Outlet Dia
| N.W/G.W
|
SFBP1-G750-07
| 750 GPH
| 12V
| 3.0A
| 3.0m
| 1 m
| 19 mm/3/4"
| 1.17/1.37 kg
|
SFBP2-G750-07
| 750 GPH
| 24V
| 1.6A
| 3.0m
| 1 m
| 19 mm/3/4"
| 1.17/1.38 kg
|
