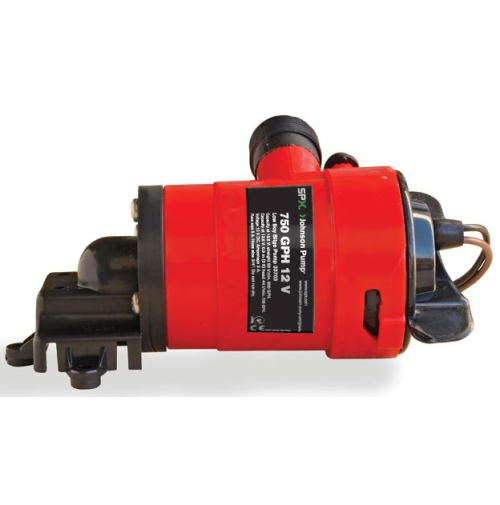

Low Profile pump design for ease of mounting and removal in tight bilge areas.
Perfect for vessels with bilge pumps mounted beneath inboard or I/O engines.
Removable cartridge style.
For L550 LB we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps.
The pumps will be delivered including both a straight and a 90° smooth elbow Dura-Port.
Order No.
| Description
| Capacity 3 ft (0.9 m) head (13.6 V) | Capacity straight (13.6 V)
| Amperage
| Fuze Size
| Connection
|
32-33103LB-01 | L 750 LB - 1150 GPH, 12 V | 60 L/min - 952 GPH | 73 L/min - 1150 GPH | 3 A | 5 A | 1.1/8"
|
Technical Features:
- Max length: 146 mm – 5.75”
- Width: 81 mm – 3.2”
- Height: 72 mm – 2.82”
- Wire size: 1.3 mm2 – 16 GA
