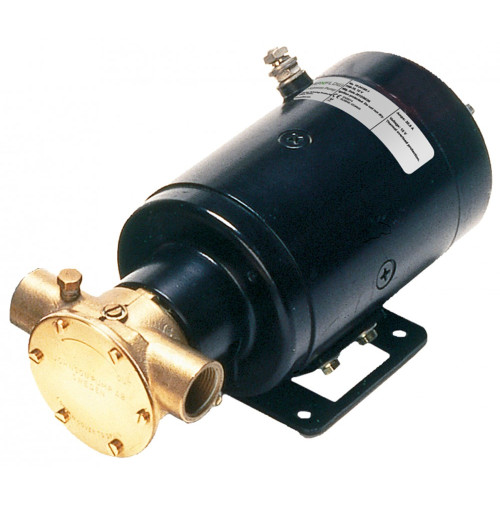

DC Driven Pump F5B-19 - PP10-24188-1X:
Capacity 55L/min 14.5 GPM
With their high level of flexibility, the DC driven pumps from Johnson Pump can be used for a variety of different applications and are ideal as deck wash pumps.
Not to be used for pumping paraffin or other thin petroleum products.
They can be combined with a vacuum switch when used as bilge pumps and with a pressure switch for deck wash applications.
For bilge pumping, deck wash, water circulation, oil and diesel refuelling at dockside service, ...
Item No. | Description | Body | Impeller | Seal | Connection | Length | Width | Height | Weight |
10-24188-1 | F5B-19, 12V | Bronze | 09-1027B-9 | Mechanical Seal | 3/4" Hose | 258mm - 10.15"
| 131mm - 5.15" | 120mm - 4.72" | 8kg - 17.5lbs |
10-24188-2 | F5B-19, 24V
| Bronze
| 09-1027B-9
| Mechanical Seal
| 3/4" Hose
| 258mm - 10.15"
| 131mm - 5.15"
| 120mm - 4.72" | 8kg - 17.5lbs |
Technical Features:
• Oil-resistant impeller
• Self-priming
• Easy maintenance
• Handle debris (bilge pumping)
Design features:
* Pump: F5B-19
* Part no:
- 10-24188-1 For 12 V
- 10-24188-2 For 24 V
* Motor: 12V or 24V
* Body: Bronze
* Impeller: 09-1027B-9
* Seal: Mechanical seal
* Connection: 3/4” hose
* Lenght (mm): 258 mm
* Width (mm): 131 mm
* Height (mm): 120 mm
* Weight (kg): 8 kg
*Includes Nitrile impeller
