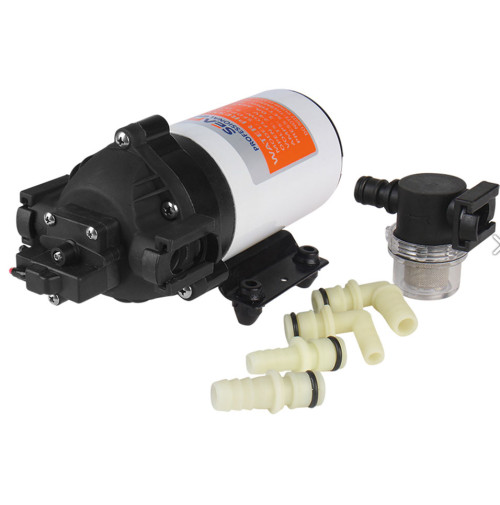

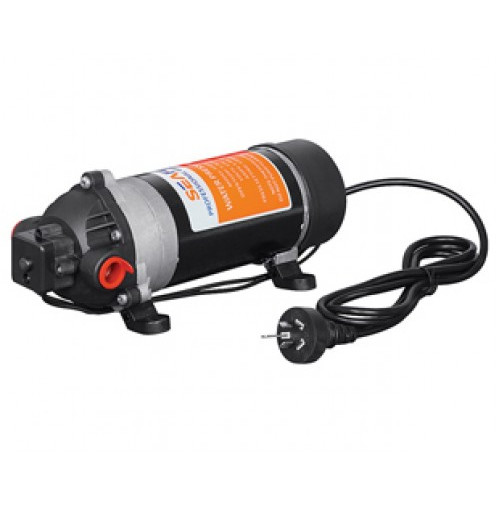

35 AC SERIES Diaphragm Pump - 160 PSI - 5.5 LPM - 220 Volt - SFDPA2-015-160-31:

Application:

Pressure pumps are used for:

Spray systems (moving sprayers, electric sprayers)

Cleaning machines, humidifiers, water purification, and medical equipment.

(Fresh) drinks, nutrient solution, and liquid transport.

Other fluid pressure systems.

Performance: 3 pump chambers membrane pump for smooth flow and quiet liquid displacement.

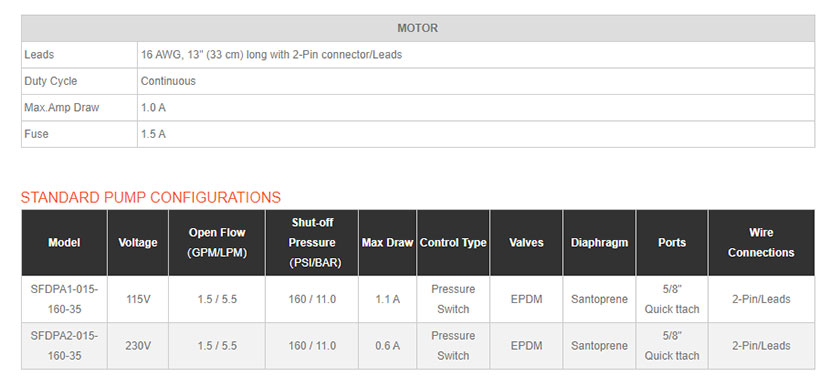

Voltage:  220 V

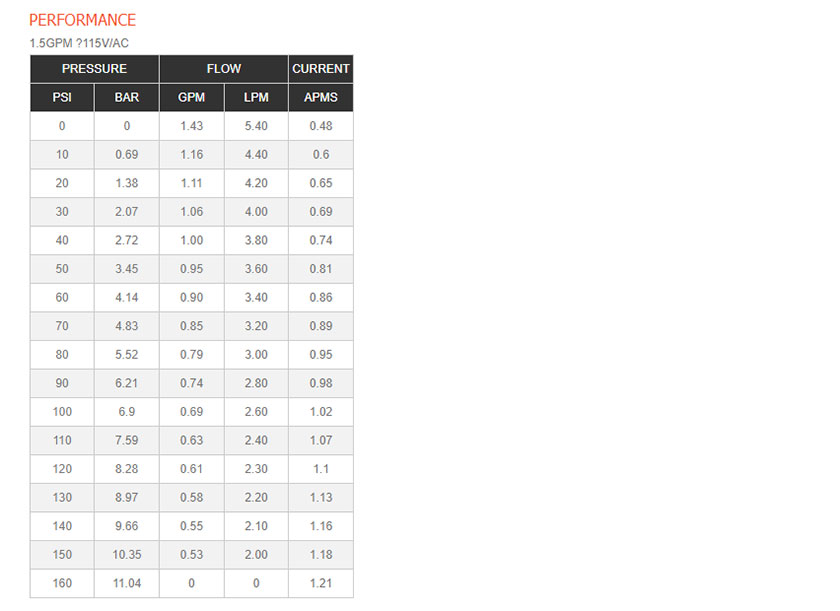

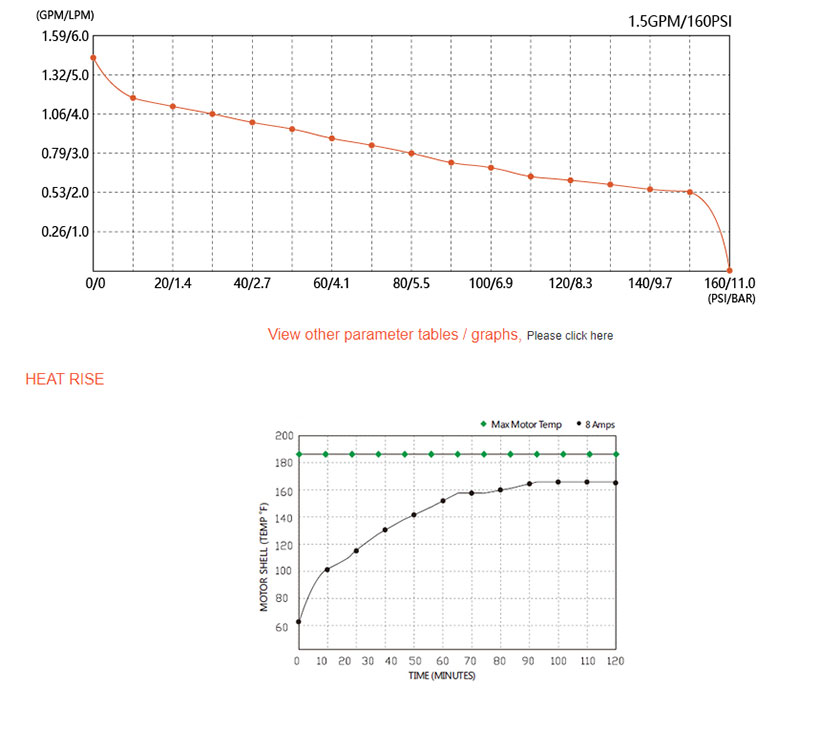

Maximum pump volume: 5.5 liters / min. Can be set for volumes from 1.0 to 5.5 l./min.

Maximum pump pressure: 11.7 bar.

Security: pressure switch/Pressure / off security or bypass protection switch. If the supply voltage is protected, the pump can be selected without pressure protection.

Duty cycle: intermittent load (with different pressures the continuous pump cycle can also be regarded as interrupted)
