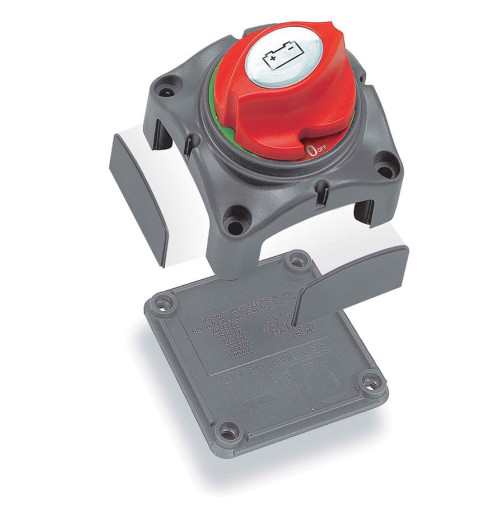

275 Amp Battery Master Switch:
Series: 8540
Contour Lock system with removable plates for connection from all sides.
This allows the switch to be a stand alone unit or locked together with other switches.
The control knob can not be removed whilst in an ON or OFF position, however it can be removed by switching to an anti-clockwise 45° position.
Suitable for surface or recess mounting by cutting a 52mm diameter hole.

Hella Marine |
Degree of Protection |
IP 56 |
Material Description |
Impact resistant plastic. Tin plated copper studs and nuts |
Max. Load Continuous |
Continuous 275 Amps |
Max. Load Cranking |
1250 Amps (10 seconds) |
Max. Load Intermittent |
455 Amps (5 minutes) |
Max. Voltage |
48V DC |
Operation |
ON / OFF |
Termination Stud Size |
2 x 10mm (3/4") |
