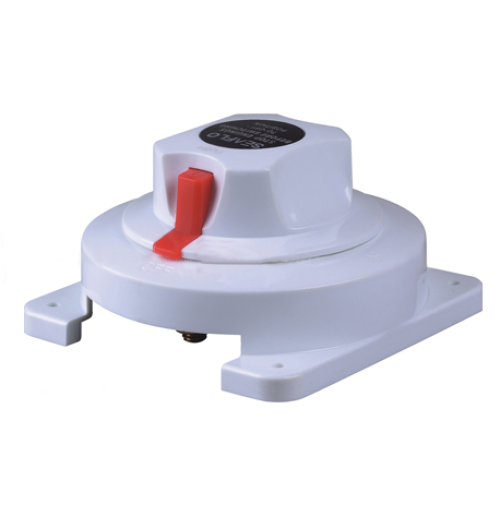

Selector switch - SFCBS-175-402 :

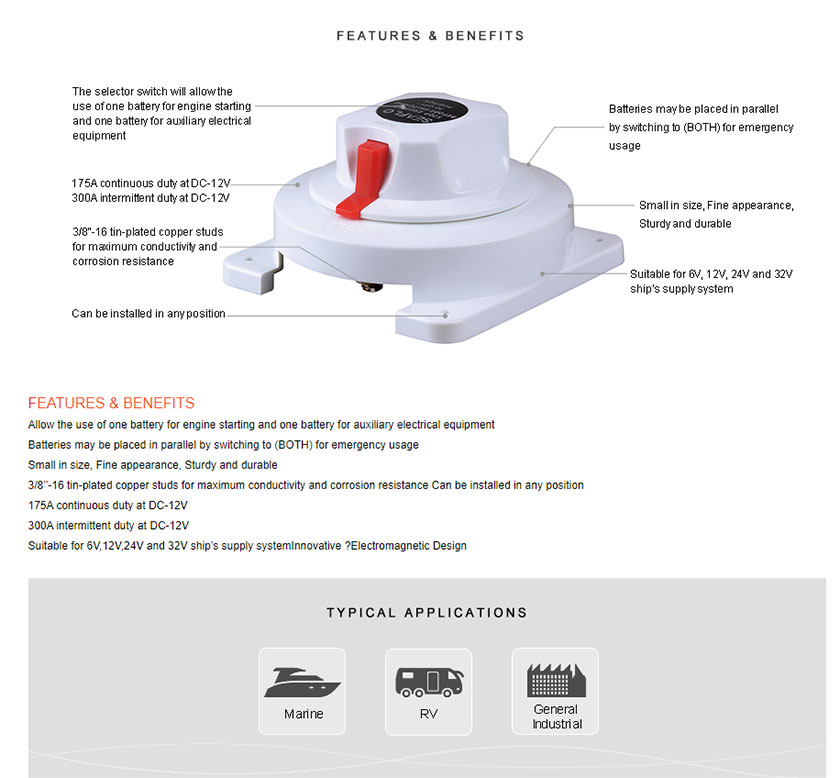

Features & Benefits:
The selector switch will allow the use of one battery for the engine starting
and one battery for auxiliary electrical equipment.
Batteries may be placed in parallel by switching to (BOTH) for emergency usage
Small in size, Fine appearance, Sturdy and durable

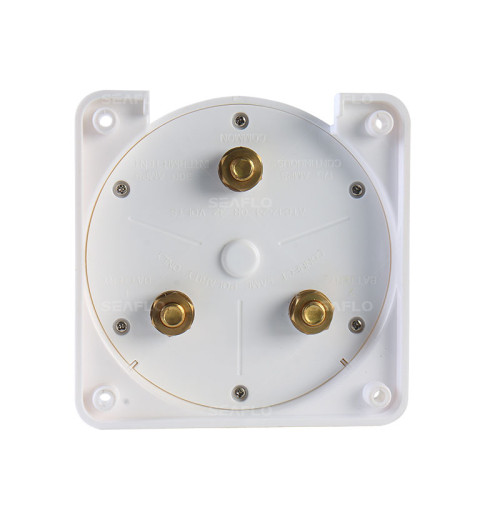

3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
Can be installed in any position
175A continuous duty at DC-12V
300A intermittent duty at DC-12V
Suitable for 6V, 12V, 24V, and 32V ship's supply system

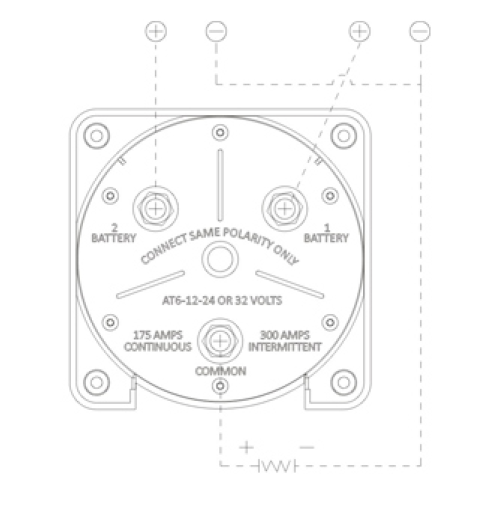

OFF - Complete disconnect of both batteries or banks of batteries
1- Operation of No.1 battery only
2- Operation of No.2 battery only
BOTH- Operation of both batteries and banks of batteries
Typical Applications:
Marine
RV & Campers
Industrial

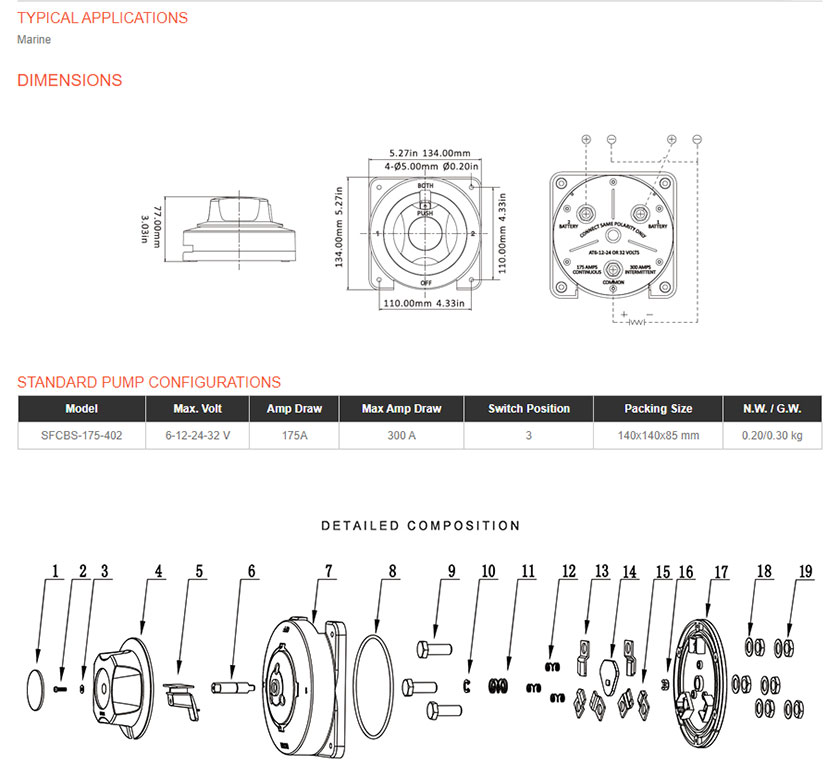

Model
| SFCBS-175-402
|
Max.Volt (V)
| 6-12-24-32
|
Amp Draw (A)
| 175
|
Max Amp Draw (A) | 300
|
Switch Position
| 3
|
Packing Size
| 140x140x85 mm
|
N.W/GW | 0.45*0.65 kg
|
