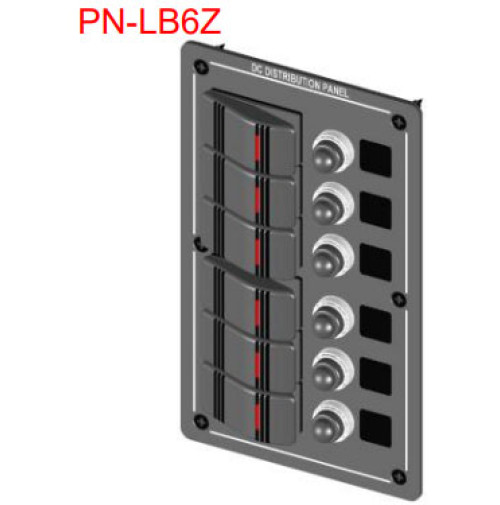

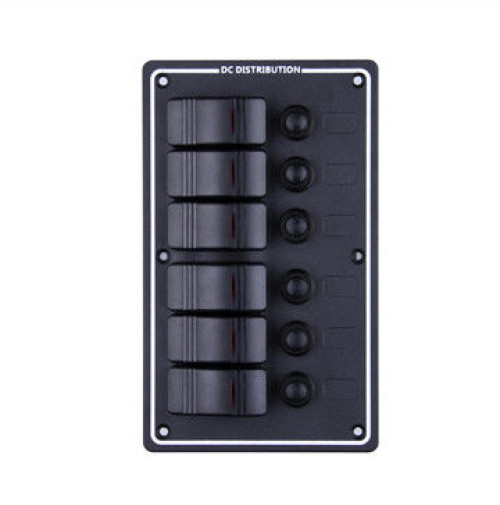

Rocker Switch with 6 Panels - PN-LB6Z:
Special Features:
Product part: PN-LB6Z
Panel waterproof 12 V DC.
Whether you're a pro or boating for pleasure, make the most out of your boat and time on the water!
Built with the highest quality standards and reliability in mind, every product is designed to suit your specific needs and requirements to maximize your enjoyment on the water.
Included:
- Rocker switch [SPST/ON-OFF]
- Breakers
- Stainless steel screw
- Nitrile rubber gasket[2.0mm]
- 45 indication label
- Electrical wiring [UL/1015]
Product specifications:
- Material description: High quality aluminum
- Installation: Pre-wired
- Switches available: 6 gang
- Amp rating per circuit: 15 amp maximum
- Rocker switch: 6
- Breaker: 5A*3 , 10A*2 & 15A*1
- Loop circuit: On-off
- Switch system: Water-resistant enclosed rocker switch
- Rating: AC 125V 16A, 250V 10A, DC 12V 20A & 24V 10A
- Dielectric strength: AC 1500 V 1 minute
- Operating temperatures: -25 degree to 80 degrees
- Electrical life: 10000 make and break cycles at full load
- IP rating: IP 68
- Size of the panel: 114.5*190.5 mm
- Size of the hole: 86*152 mm
