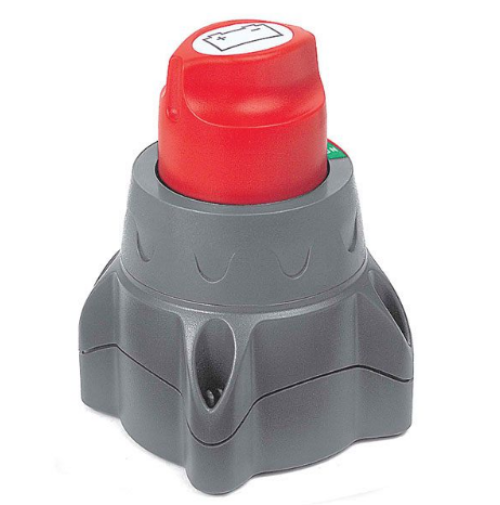

275 Amp Easyfit Battery Master Switch:
Series: 8540
The Easyfit battery switch allow installations through varying panel thicknesses via a removable threaded ring allowing for panel thicknesses up to 19mm (3/4”).
The switch can also be surface mounted and the key is removable.

| Hella Marine |
| Continuous Max. Load | 275 Amps |
| Cranking Max. Load | 1250 Amps (10 seconds) |
| Degree of Protection | IP 56 |
| Intermittent Max. Load | 455 Amps (5 minutes) |
| Material Description | Impact resistant plastic, Tin copper studs and nuts |
| Max. Voltage | 48V DC |
| Operation | ON / OFF |
| Termination Stud Size | 2 x 10mm (3/4") |
